Quality & Testing

End-of-line and project-specific testing support for back EMF consistency, insulation, torque behavior, thermal limits, and outgoing records.

Best Fit For:Quality, procurement, and engineering teams that need traceable evidence before approving a motor supplier.

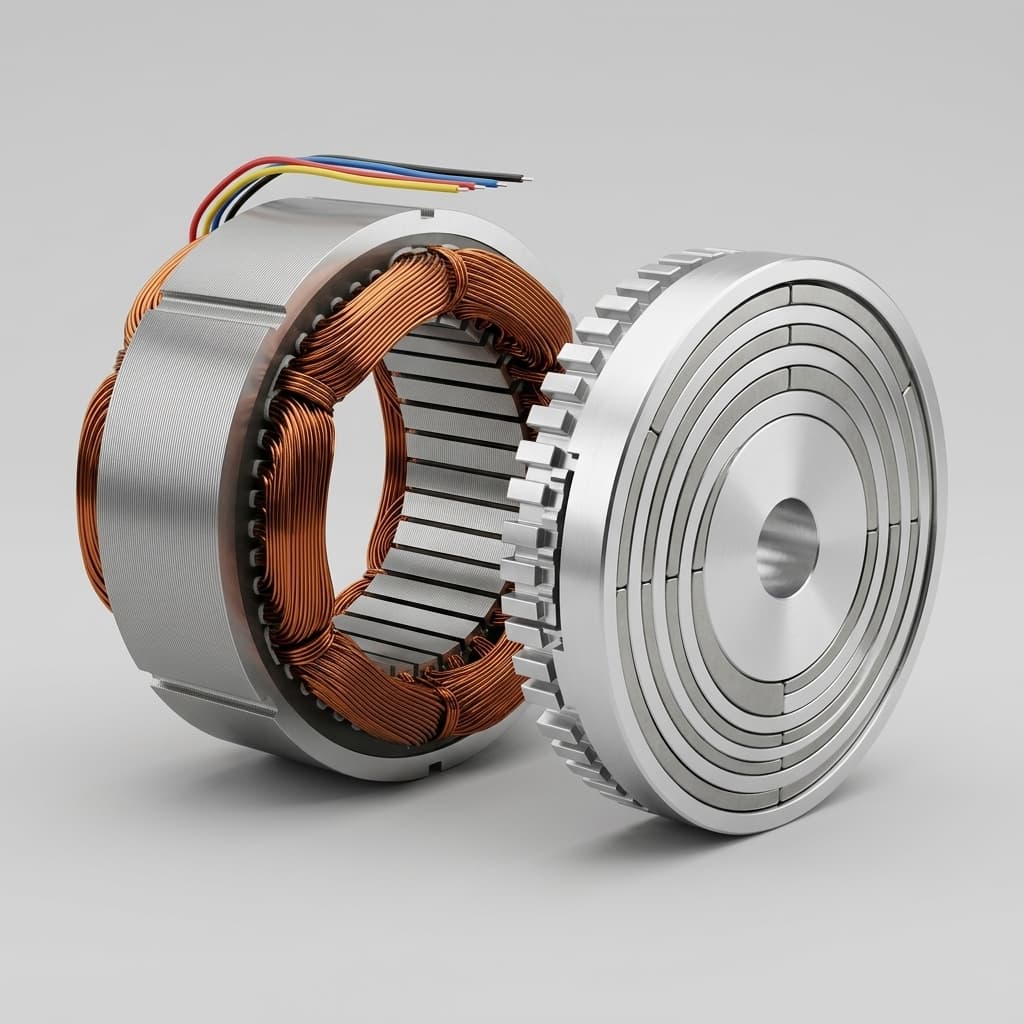

Frameless torque motor rotor and stator for quality testing

Capability Highlights

Back EMF, resistance, insulation, and hi-pot checks by motor scope.
Torque ripple and thermal validation planning for critical applications.
Per-unit or batch-level reports available by project requirement.

Typical Engagement Scope

Supplier qualification
Sample acceptance
Production release

Execution Focus

This page is written for supplier qualification, not generic company promotion. Use the points below to decide what must be fixed before quotation, what can remain flexible during sampling, and what evidence should be attached before production release.

Map test records to buyer CTQ requirements.
Avoid unsupported CE, RoHS, ISO, or UL claims without evidence.
Define outgoing inspection and reporting format before production.

Program Evaluation Matrix

OEM motor programs fail when commercial discussions move faster than engineering closure. Treat each metric as a control point: if the value is unknown, mark the owner and timing before ordering samples.

Program Metric	Typical Range	Procurement Value
Test record scope	Back EMF, resistance, insulation, torque, thermal	Reduces cross-border supplier risk before ramp.

RFQ Preparation Checklist

A complete RFQ lets the factory review design feasibility, sample scope, tooling need, test records, and export planning in one pass. If some values are not frozen, say so explicitly.

Target outside diameter, inside diameter, stack length, and available mounting envelope.
Continuous torque, peak torque, target speed, duty cycle, and expected motion profile.
DC bus voltage, current limit, cooling method, ambient temperature, and insulation requirement.
Lead wire, connector, Hall, encoder, resolver, or bare motor integration requirements.
Prototype quantity, annual forecast, target delivery country, and requested timeline.

Risk and Mitigation

The goal is to expose preventable risk early: unclear drawings, untested thermal assumptions, changing sample requirements, or production records that were requested too late.

Certification language is broader than actual evidence: Use compliance-safe wording and request supporting documents for the exact project scope.

OEM Program Gate Checklist

For B2B buyers, the practical value of an OEM page is knowing how the project moves from first drawings to repeat supply. These gates help engineering, procurement, and quality teams avoid approving different assumptions.

Gate	Must Be Clear	Output
Requirement freeze	Drawing revision, OD/ID, torque-speed duty, drive limits	Quotation baseline and open-issue list
Sample build	Winding target, lead exit, sensor interface, test method	Samples tied to a configuration record
Validation review	Fit, electrical startup, thermal rise, and motion quality	Pass/fail notes and change actions
Repeat supply	Forecast, packaging, inspection records, shipment cadence	Production and delivery control plan

Example Test Report Structure Buyers Can Request

For supplier qualification, the most useful evidence is not a generic certificate badge. It is a test record tied to the exact quoted configuration, sample revision, and acceptance scope. The fields below can be used as a buyer-side request template before sample or pilot release.

Report Section	Typical Fields	Buyer Qualification Value
Configuration identity	Project name, drawing revision, motor family, winding code, sample or lot ID	Prevents a test record from being separated from the exact approved configuration.
Electrical checks	Phase resistance, phase balance, inductance if required, back EMF value and waveform note	Confirms winding consistency and drive compatibility before integration.
Insulation and safety checks	Insulation resistance, hi-pot condition, visual insulation review, lead-wire check	Reduces electrical risk before the motor enters the buyer assembly.
Motion / torque validation	Torque behavior, cogging or ripple discussion, no-load startup notes, test condition	Helps separate motor behavior from full-axis control-loop or encoder issues.
Thermal and outgoing records	Cooling assumption, temperature-rise method if applicable, final inspection, packaging note	Connects continuous rating claims to the operating condition and shipment release.

Related Products

Frameless direct-drive motor for precision validation

High precision direct-drive motor for outgoing inspection review

Buyer FAQ

Can you provide test reports?

Project-specific test records can be discussed during RFQ. The required report format should be defined before sample or production release.
